Steel Rebar B500B / B500C
Supplier in UAE
Metal Junction FZE supplies deformed reinforcing steel bars Grade B500B and B500C to EN 10080 — diameters 6 mm to 50 mm, standard 12 m lengths — with full EN 10204 Type 3.1 Mill Test Certificates for UAE and GCC construction, civil, and infrastructure projects.
Certified Rebar Supplier for UAE & GCC
Metal Junction FZE supplies deformed reinforcing steel bars (rebar) from our Umm Al Quwain Free Trade Zone base to construction, civil engineering, and infrastructure projects across the UAE and wider Middle East. We stock and source Grade B500B (standard ductility) and B500C (high ductility / seismic) deformed reinforcing bars in diameters 6–50 mm to EN 10080, all supplied with full EN 10204 Type 3.1 Mill Test Certificates.
Whether you need a single diameter in standard 12 m lengths for a UAE concrete frame structure, or a full project package of mixed diameters with certified test reports for a seismic-zone building — we source, certify, and deliver to your schedule across the UAE, Qatar, Saudi Arabia, and Oman.
- B500B and B500C deformed reinforcing bars to EN 10080 — standard and seismic ductility
- Diameters Ø 6, 8, 10, 12, 16, 20, 25, 32, 40, 50 mm — all in 12 m standard lengths
- Cut-to-length service available for UAE site-specific requirements
- UAE-origin (Emirates Steel) available for projects requiring local content
- European origin (Turkey, Spain, Germany) available for ADNOC / ARAMCO AVL projects
- Full MTC documentation — chemical analysis, mechanical tests, bend test, rebend test
Rebar — At a Glance
B500B vs B500C — Which Grade Do You Need?
Both grades share the same 500 MPa characteristic yield strength — the key difference is ductility class, which determines suitability for seismic design. We supply both grades from certified UAE and European mills.
Our Rebar Stock

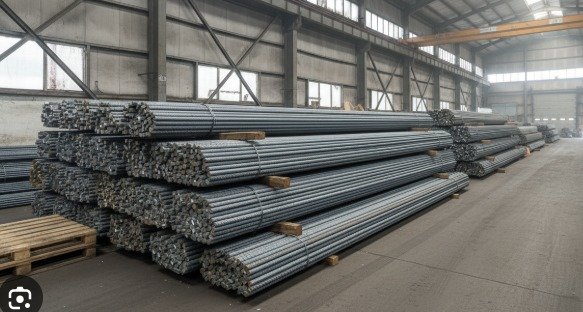

Bundled Stock — Warehouse UAE
Deformed Profile — EN 10080
Rebar Specification Tables
Full mechanical and dimensional reference data for B500B and B500C deformed reinforcing bars to EN 10080. Contact us for full dimensional tolerances, rib geometry data, and current pricing.
| Property | Symbol | B500B (Class B) | B500C (Class C) | Test Method |
|---|---|---|---|---|
| Characteristic Yield Strength | fyk | 500 MPa | 500 MPa | EN ISO 6892-1 |
| Actual Yield Strength (max) | Re,act | ≤ 650 MPa | ≤ 650 MPa | EN ISO 6892-1 |
| Tensile Strength (min) | Rm | ≥ 540 MPa | ≥ 575 MPa | EN ISO 6892-1 |
| Ratio Rm / Re (min) | ft/fyk | ≥ 1.08 | ≥ 1.15 and < 1.35 | Calculated |
| Elongation at Max Force | Agt | ≥ 5.0% | ≥ 7.5% | EN ISO 6892-1 |
| Ductility Class | — | Class B | Class C | EN 1992-1 / EC8 |
| Bend Test (mandrel dia) | — | Pass (per EN 10080) | Pass (per EN 10080) | EN ISO 15630-1 |
| Rebend Test | — | Pass | Pass | EN ISO 15630-1 |
| Weldability | Ceq | ≤ 0.52% (Ceq) | ≤ 0.52% (Ceq) | EN 10080 / IIW |
| Nominal Diameter (mm) | Cross-Sectional Area (mm²) | Nominal Unit Weight (kg/m) | Perimeter (mm) | Standard Length | UAE Application |
|---|---|---|---|---|---|
| Ø 6 mm | 28.3 | 0.222 | 18.8 | 12 m | Mesh, slab light reinforcement |
| Ø 8 mm | 50.3 | 0.395 | 25.1 | 12 m | Slabs, walls, links, stirrups |
| Ø 10 mm | 78.5 | 0.617 | 31.4 | 12 m | Slabs, beams, columns (light) |
| Ø 12 mm | 113.1 | 0.888 | 37.7 | 12 m | General RCC, UAE mid-rise frames |
| Ø 16 mm | 201.1 | 1.578 | 50.3 | 12 m | Columns, beams, retaining walls |
| Ø 20 mm | 314.2 | 2.466 | 62.8 | 12 m | High-rise columns, transfer beams |
| Ø 25 mm | 490.9 | 3.854 | 78.5 | 12 m | Heavy columns, pile caps, raft slabs |
| Ø 32 mm | 804.2 | 6.313 | 100.5 | 12 m | Large-span beams, bridges, UAE infrastructure |
| Ø 40 mm | 1256.6 | 9.865 | 125.7 | 12 m | Bridge piers, heavy civil foundations |
| Ø 50 mm | 1963.5 | 15.413 | 157.1 | 12 m | Mass concrete, major civil structures |
| Element | B500B Max (%) | B500C Max (%) | Notes |
|---|---|---|---|
| Carbon (C) | 0.22 | 0.22 | Controls weldability and hardness |
| Sulphur (S) | 0.050 | 0.050 | Low S for improved toughness |
| Phosphorus (P) | 0.050 | 0.050 | Low P for weldability |
| Nitrogen (N) | 0.013 | 0.013 | Controlled for ductility |
| Copper (Cu) | 0.80 | 0.80 | Maximum residual element |
| Carbon Equivalent (Ceq) | ≤ 0.52 | ≤ 0.52 | IIW formula — governs weldability |
Where Our Rebar Gets Used
High-Rise Buildings
Column, beam, and slab reinforcement for UAE residential and commercial towers — B500B and B500C
Bridges & Highways
Bridge decks, piers, abutments, and UAE road infrastructure — heavy Ø 32–50 mm rebar
Foundations & Raft Slabs
Deep foundations, pile caps, and raft slabs for UAE developments on soft ground
Water & Wastewater
UAE desalination plant foundations, water storage tanks, sewage infrastructure
Industrial Buildings
Factory floors, warehouse slabs, plant room structures, and UAE industrial facility construction
Oil & Gas Structures
Concrete encased pipe racks, equipment foundations, and UAE refinery and plant structures
Power & Energy
Power plant foundations, substation structures, and solar farm concrete mounting systems
Metro & Tunnels
UAE metro station slabs, tunnel lining, and underground concrete infrastructure — B500C seismic grade
The Right Rebar Partner for UAE Projects
From small building packages to full project MTO rebar supply — here's why UAE contractors and construction companies trust Metal Junction FZE for certified reinforcing steel.
UAE & European Mill Sourcing
Direct supply from Emirates Steel (UAE local content), Turkish mills (Çolakoğlu, İçdaş), and European producers — with full mill traceability and country-of-origin documentation.
Full EN 10204 Type 3.1 MTC
Every rebar order ships with EN 10204 Type 3.1 Mill Test Certificates — chemical analysis, mechanical properties, bend test, rebend test, and dimensional inspection records.
Cut-to-Length & Site Packs
Standard 12 m lengths or cut-to-your-specification — we can provide project packs sorted by diameter and bundled to your site delivery schedule.
Both B500B & B500C
We supply both ductility classes from certified mills — ensuring the right grade reaches the right structural element whether seismic design is required or not.
Fast UAE Delivery
Stock diameters available for same-week dispatch from UAE. Full project packages sourced and shipped on your construction programme schedule.
Competitive Free Zone Pricing
UAQ Free Trade Zone base keeps our costs low — we pass those savings directly to you without compromising on grade, certification, or delivery.
